Brute Force Intake System
Special Price
$349.99
Regular Price
$399.99
In stock
SKU
AEM-21-8504DC

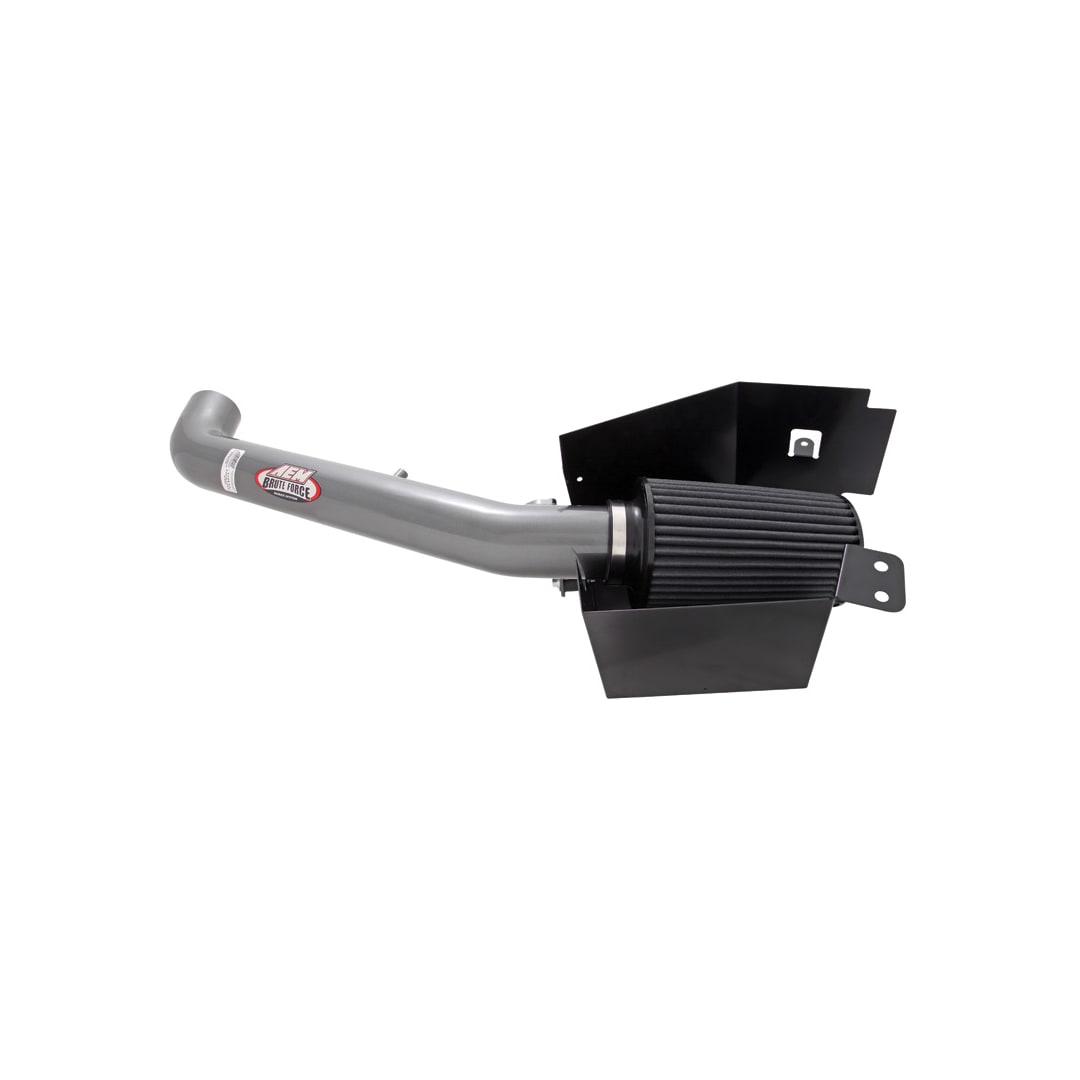

The AEM 21-8504DC Brute Force Air Intake System produces horsepower and torque gains by replacing the vehicle's restrictive factory air filter and air intake housing. This air intake system was designed, tuned and dyno-tested to fit specific Nissan Frontier, Xterra and Pathfinder models. Air enters the system through an extra large AEM Dryflow synthetic washable air filter for outstanding air flow, filtration and performance. The air filter is located in the original air box space and is protected by a heat shield which is designed to reduce intake air temperature and increase horsepower. The intake tubing is constructed from mandrel-bent aluminum featuring a durable gunmetal gray powder coated finish. This air intake system was developed to accommodate the engine's factory emissions control devices including the mass air flow sensor and crank case vent hose. The tapered cylinder shaped AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before cleaning is needed (depending on driving conditions). The air intake system is easy to install with commonly available tools and it is backed by AEM's Lifetime Limited Warranty. Some AEM air intakes are not legal for sale or use in California and other states adopting California emission standards while others are 50 state legal. View the 21-8504DC vehicle applications to determine the legal status for each vehicle.
- Increased horsepower
- Tuned and dyno-tested to improve acceleration and engine sound
- Low restriction aluminum tubing
- Easy to install using commonly available tools
- Air filter lasts up to 100,000 miles before cleaning is required (depending on driving conditions)
- Washable and reusable oil-free filter media
- AEM Lifetime Limited Warranty
Estimated Horsepower Gain | 11.2 HP @ 5300 RPM |
Replacement Filter | 21-2109DK |
Air Filter Color | Red |
Air Filter Material | Non-woven Synthetic |
Clamps Included | 1 |
Clamp Material | Steel |
Clamp Style | Regular |
Couplers Included | None |
Power Spacer included | No |
Warranty | Limited Lifetime |
Product Style | AEM Brute Force Intake System |
Air Filter Outlet Shape | Round |
Intake Pipe Color / Finish | Gunmetal Gray |
Intake Pipe Material | Aluminum |
CARB EO Number | D-670-21 |
Street Legal In All US States | Not legal for sale or use in California on any pollution controlled motor vehicle. NOTE: Some specific models and years may be legal in CA. Check the CARB status on your vehicle in the applications listings. |
TUV Approved (Europe) | No |
Weight | 13.6 lb (6.2 kg) |
Product Box Height | 10.75 in (273 mm) |
Product Box Length | 35.63 in (905 mm) |
Product Box Width | 13.25 in (337 mm) |
Mounting Hardware Included | Yes |
Oversize Shipping | OS1 |
No cross references found for this part
DIY Level
Easy Moderate Advanced
Tools Needed
Wrench, Extension, Flat Blade Screwdriver, Allen Wrench
Installation Time
90 Minutes
Resources:
Installation PDF
Installation Instruction Sheet Dyno Chart - 2005 Nissan Frontier 4.0L - 11.20HP Increase
